Trek Marlin 5

Trek Marlin 5


Matte Black

Add To Cart


  • Frameset

    Frame Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR

    Fork SR Suntour XCE 28, coil spring, preload, 100mm travel (13.5: 80mm travel)

    Front suspension SR Suntour XCE 28, coil spring, preload, G2 Geometry w/51mm offset on 29ers, 100mm travel (13.5: 80mm travel)

  • Wheels

    Front hub Formula DC20 alloy

    Rear hub Formula DC31 alloy

    Rims Bontrager Connection 32-hole double-walled

    Tires Bontrager XR2, 29x2.20˝ front, 29x2.0˝ rear (13.5 & 15.5: 27.5x2.20˝)

  • Drivetrain

    Shifters Shimano Altus M310, 7 speed

    Front derailleur Shimano Tourney TY300

    Rear derailleur Shimano Tourney TY300

    Crank Shimano Tourney TY301, 42/34/24

    Bottom bracket Sealed cartridge, 73mm

    Cassette Shimano TZ500, 14-28, 7 speed

    Chain KMC Z51

    Pedals VP-536 nylon platform

  • Components

    Saddle Bontrager Arvada

    Seatpost Bontrager alloy, 2-bolt head, 31.6mm, 12mm offset

    Handlebar Bontrager alloy, 31.8mm, 5mm rise

    Grips Bontrager XR Endurance Comp, lock-on

    Stem Bontrager alloy, 31.8mm, 7 degree, Blendr compatible

    Headset 1-1/8˝ threadless, semi-integrated, semi-cartridge bearings

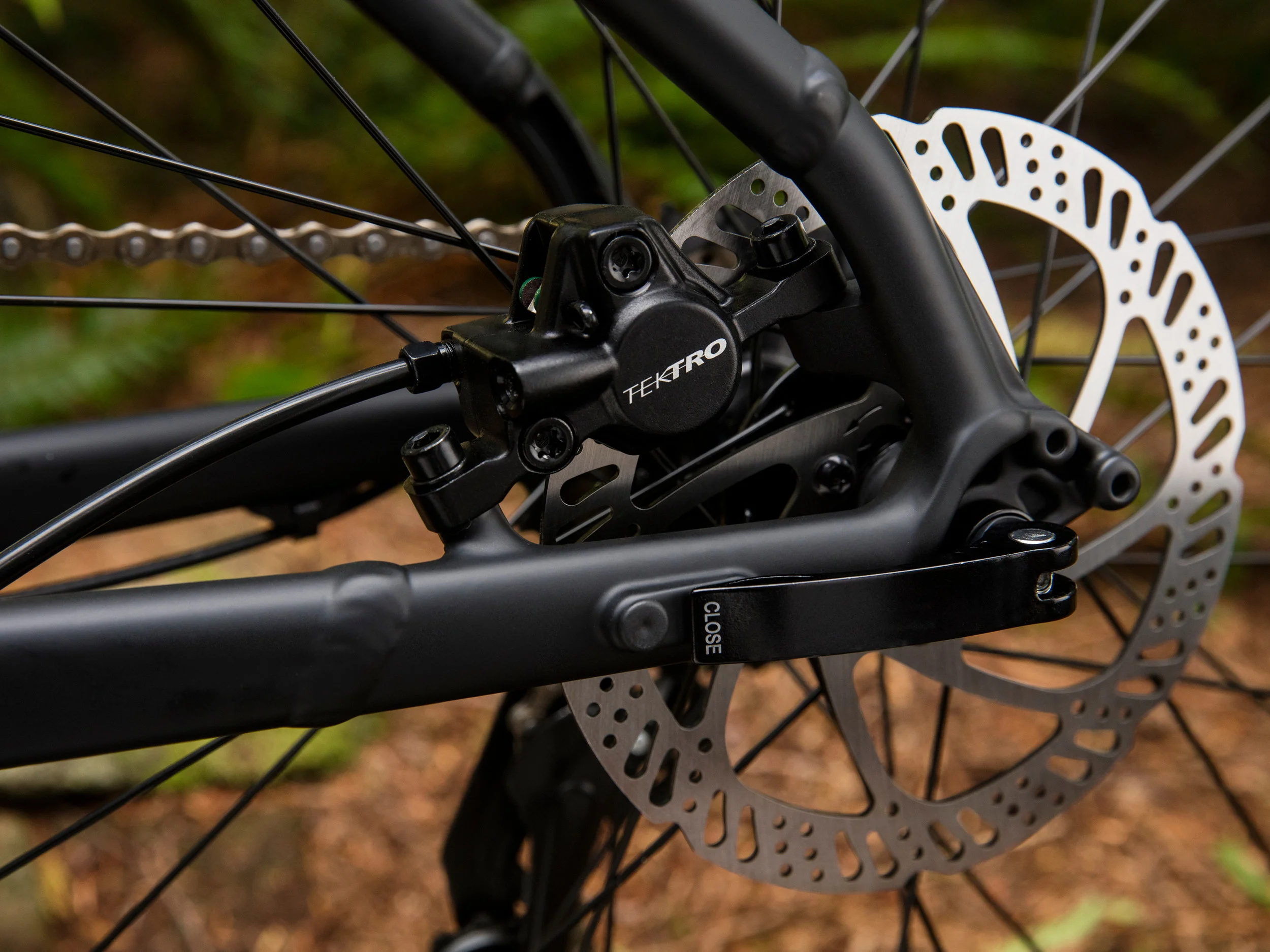

    Brakeset Tektro HD-275 hydraulic disc (13.5 & 15.5: Tektro HD-276 short reach lever)

  • Weight

    Weight M - 14.59 kg / 32.17 lbs (with tubes)

    Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Bike and frame weights are based off Trek pre-production painted frames at time of publication. Weights may vary in final production.
